Magnetic 1010 Track Lighting System: Surface & Recessed Guide

The Magnetic 1010 system is a modular LED track lighting platform: a slim track rail carries power, and magnetic light heads snap onto it anywhere along its length. Luminaria Lighting stocks the full system — track, power feeders, connectors, and multiple head styles — for cabinets, wardrobes, shelving, and display lighting.

How the Magnetic 1010 system works

The "1010" track rail is a low-profile rail available in surface-mounted and recessed versions, so it can sit on top of a cabinet surface or be built flush into it. Power runs through the track, and magnetic light heads make electrical contact with the rail simply by being placed on it — no individual wiring per head. This means heads can be added, removed, or slid to a new position along the track without an electrician.

Light head styles available

• Spot light — a focused beam for highlighting a specific object or shelf.
• Sphere spot light — a rounded-housing spot light variant for a different aesthetic.
• Linear graze light — a directional linear beam that emphasizes texture when angled across a surface; also available in an adjustable version.
• Linear diffused light — even, soft illumination across a surface without visible hotspots.

All are built around CRI90 LEDs for accurate color rendering, which matters for jewelry cases, retail shelving, and kitchen cabinets.

Powering and extending the track

Power feeders connect the track to a constant-voltage LED driver (commonly 12V or 24V DC), and track connectors join multiple rail sections together to extend a run or turn a corner. Sizing the driver to the total wattage of all heads on a run is important — adding heads later should stay within the driver's rated capacity.

Typical uses

• Kitchen cabinets and open shelving, where lighting needs to follow shelf layout changes.
• Wardrobes and closets, for even illumination across hanging and folded storage.

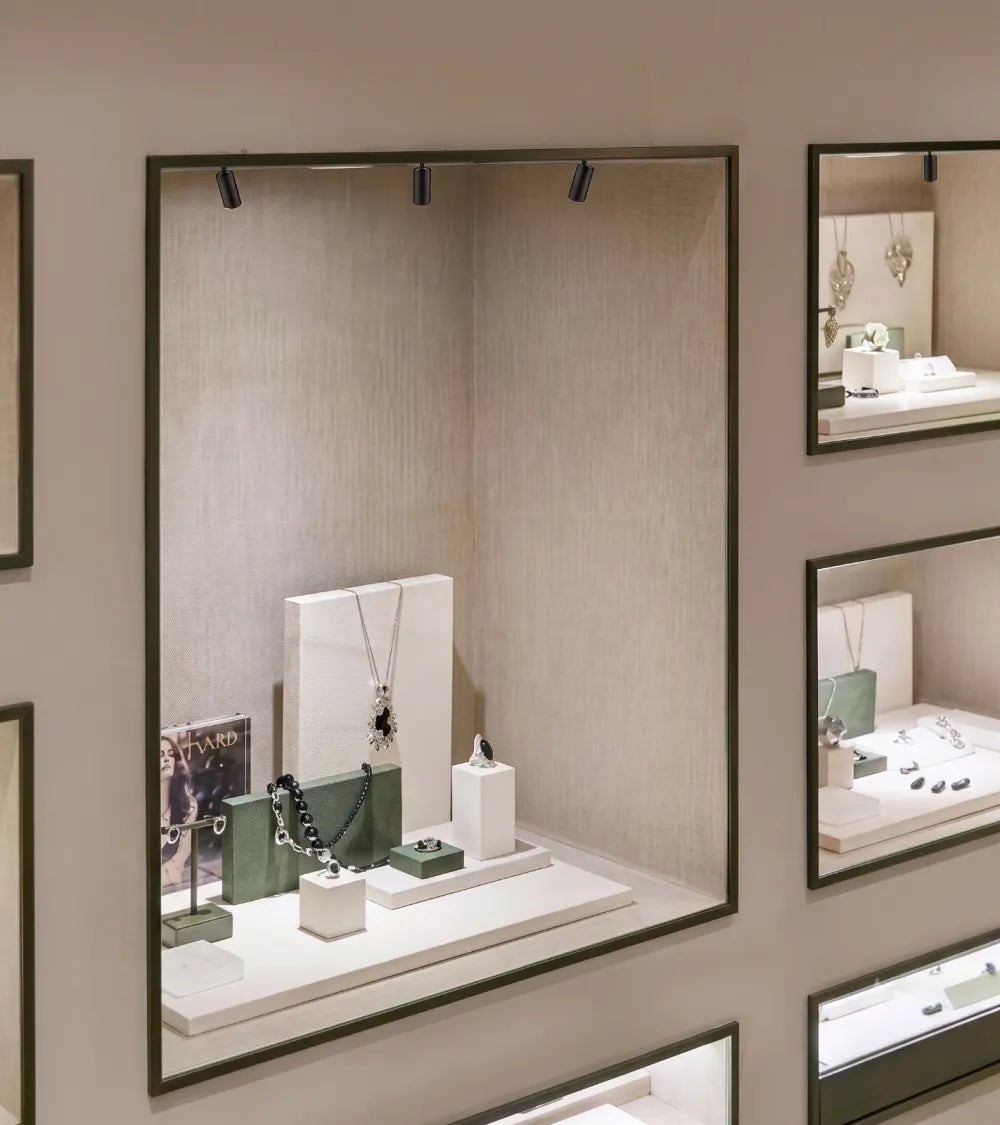

• Retail and jewelry display cases, where merchandise and layout change frequently.
• Furniture and joinery lighting, where a slim recessed track keeps the fixture invisible until lit.

See the full Magnetic collection and the Cabinet Lighting Systems collection.

Frequently asked questions

What is Magnetic 1010 track lighting?

It's a modular LED lighting system made of a slim track rail (surface or recessed) and magnetic light heads — spot, sphere spot, linear graze, and linear diffused — that snap onto the rail and can be repositioned without rewiring.

Can I move the lights after installing a Magnetic 1010 track?

Yes. The track itself is fixed, but the magnetic heads can be added, removed, or slid along the rail by hand at any time, since they draw power through magnetic contact rather than a fixed wire connection.

What's the difference between surface and recessed Magnetic 1010 track?

Surface-mounted track sits on top of the cabinet or shelf surface and is quicker to install; recessed track is built flush into the surface for a cleaner, more hidden look, and needs to be planned before the cabinetry is finished.

How do I extend a Magnetic 1010 track run?

Track connectors join additional rail sections end-to-end or around corners, and power feeders bring in the connection from the LED driver — just make sure the driver is sized for the combined wattage of every head on the extended run.
