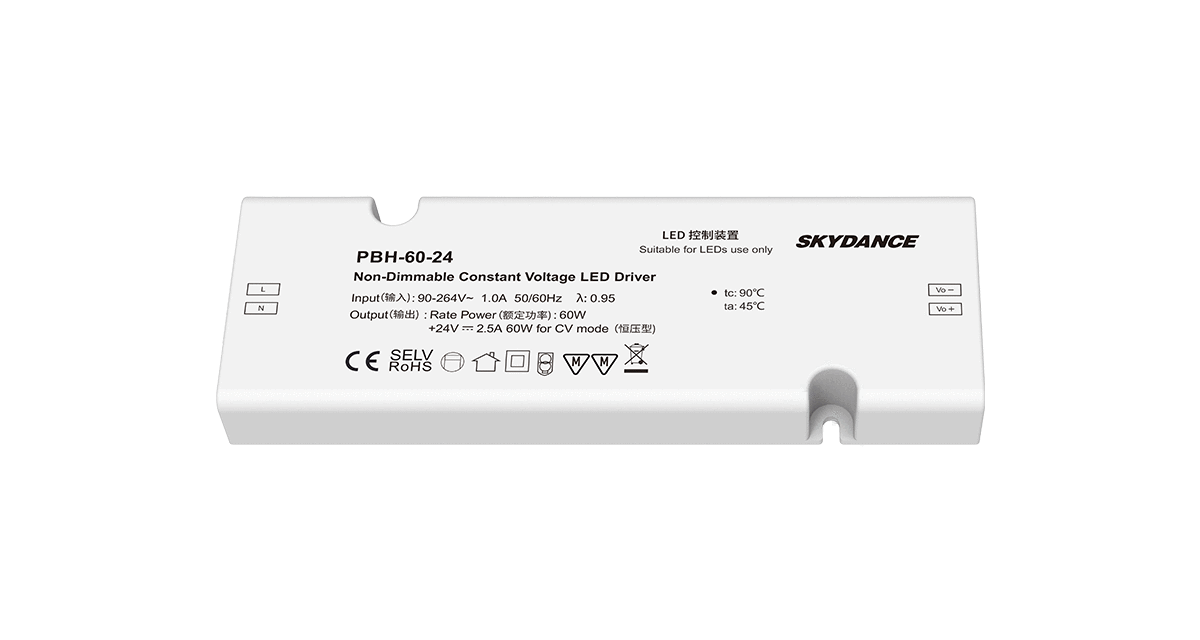

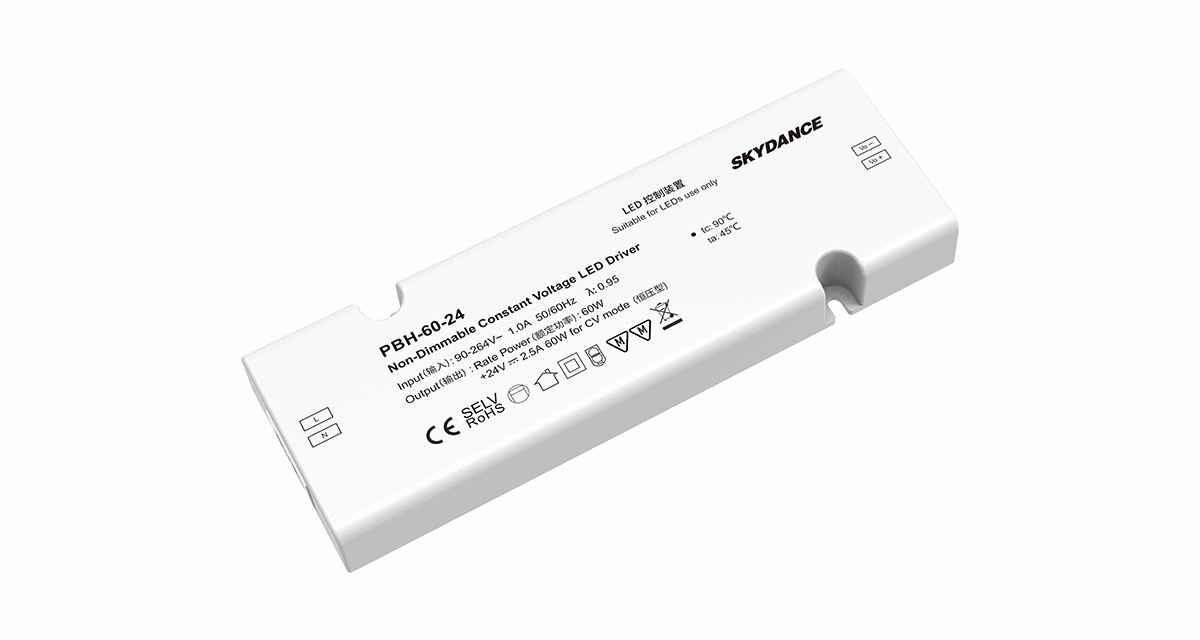

60W Constant Voltage LED Driver | 12VDC / 24VDC
60W Constant Voltage LED Driver | 12VDC / 24VDC
Overview
The 60W Constant Voltage LED Driver is a reliable power supply designed for indoor LED lighting applications. Available in both 12VDC and 24VDC versions, it delivers stable output voltage for LED strips, cabinet lighting, furniture lighting, and other constant voltage LED systems.
Its slim, lightweight design allows for easy installation in confined spaces, while built-in overload and short-circuit protection ensure safe and dependable operation for residential and commercial lighting projects.
Key Features
- Available in 12VDC and 24VDC output versions
- Maximum output power of 60W
- Wide input voltage range of 90–264VAC
- High power factor with built-in active PFC
- Slim and lightweight housing
- Stable constant voltage output
- Overload protection with automatic recovery
- Short-circuit protection
- Designed for indoor LED lighting applications
- Reliable performance for cabinet and furniture lighting
Applications
- LED strip lighting
- Cabinet lighting
- Wardrobe lighting
- Display lighting
- Furniture lighting
- Retail shelving
- Residential lighting
- Commercial interior lighting
Technical Specifications
| Specification | Details |
|---|---|
| Output Voltage | 12VDC or 24VDC |
| Maximum Output Power | 60W |
| Maximum Output Current | 5A (12V) / 2.5A (24V) |
| Input Voltage | 90–264VAC |
| Input Frequency | 50/60Hz |
| Power Factor | 0.98 (Typical) |
| Efficiency | 85% |
| Dimming Range | 0–100% |
| Operating Temperature | -20°C to +45°C |
| Protection | Overload and Short-Circuit Protection |
| IP Rating | IP42 |
| Dimensions | 164 × 55 × 18 mm |
| Applications | LED strips, cabinet lighting, furniture lighting and indoor LED installations |
| Warranty | 5 Years |
