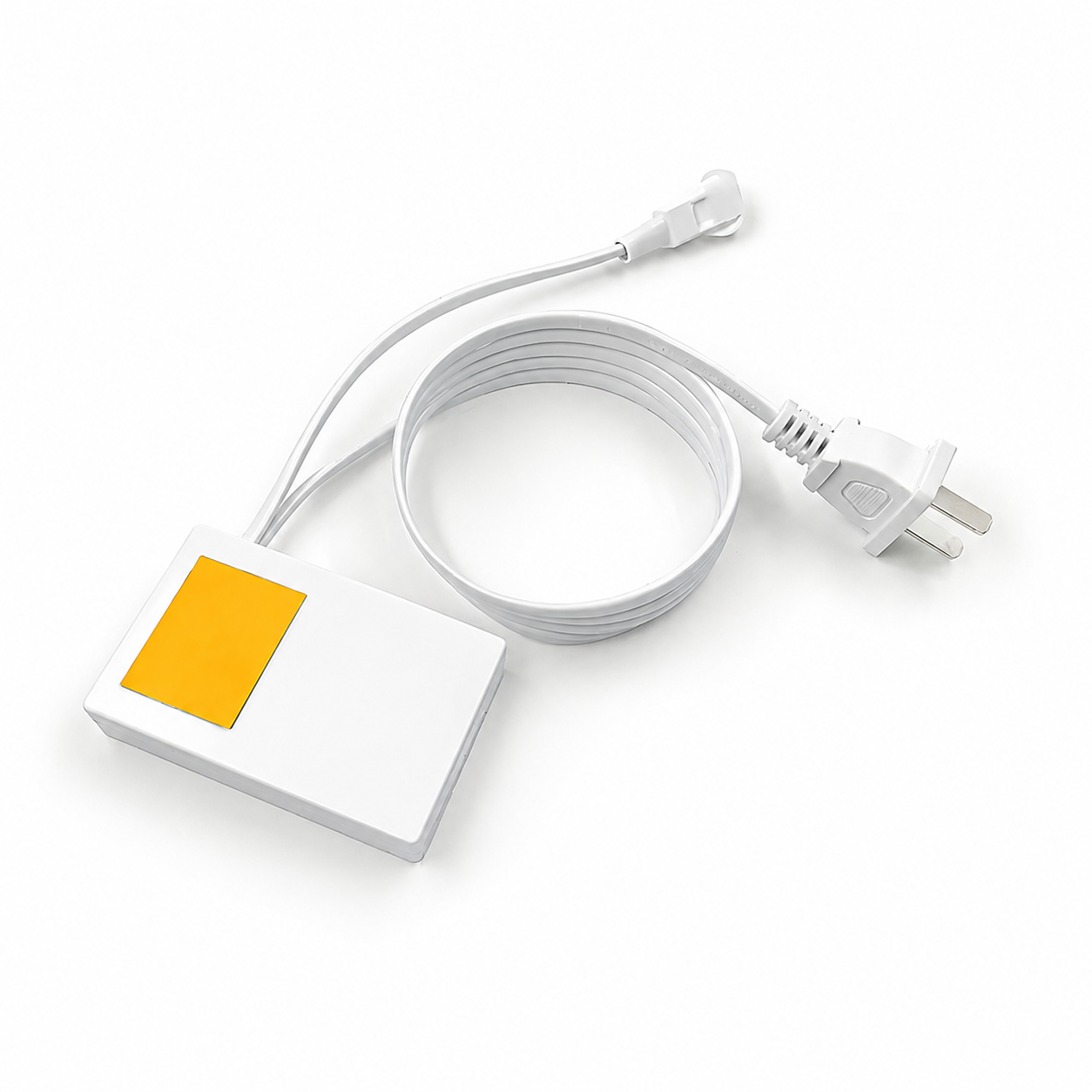

CLARIO Double Touch-Key with Power Supply for LED & Defogger Pad | 220V to 12VDC 72W IP44

Overview

The CLARIO Double Touch-Key is a combined touch switch and power supply unit that lets a single wall-mounted control operate both a mirror's LED lighting and its defogger pad independently. Built-in 220V to 12VDC conversion means no separate transformer is required — the unit takes mains input directly and delivers regulated 12V DC output at up to 72W to the connected loads. Sealed to IP44, it is suitable for standard bathroom installation away from direct water spray.

Key Features

• Two independent touch-sensitive zones — one for LED lighting, one for the defogger pad
• Built-in power supply — accepts 220V AC mains input directly
• Regulated 12V DC output, rated up to 72W combined load
• IP44 rated against dust ingress and light splashing
• No-click capacitive touch operation — silent and durable, no mechanical wear
• Compact wall-mount form factor for flush or surface installation
• Compatible with all CLARIO round and rectangular defogger pads and standard 12V LED strips

Technical Notes

• Total combined draw of LED and defogger loads must not exceed 72W.
• Each touch zone switches its output independently — LED and defogger can be operated together or separately.
• Internal power supply eliminates the need for an external 12V driver in most single-mirror installations.
• IP44 rating permits installation in general bathroom zones but not areas subject to direct water jets or submersion.

Wiring & Installation Notes

• All 220–240V mains-side wiring must be carried out by a qualified electrician and protected by an appropriate RCD.
• Mount within reach of the mirror but outside any direct-spray zone as required by local bathroom electrical regulations.
• Connect the LED load to the first output and the defogger pad to the second output, observing correct polarity on both.
• Verify total connected load does not exceed the rated 72W before energising.
• Isolate mains supply before making or altering any connections.

Applications

• Residential and hotel bathroom mirrors with combined LED lighting and defogger pad
• Backlit vanity mirror installations requiring a single unified control
• Spa and wellness facility mirrors

Technical Specifications
