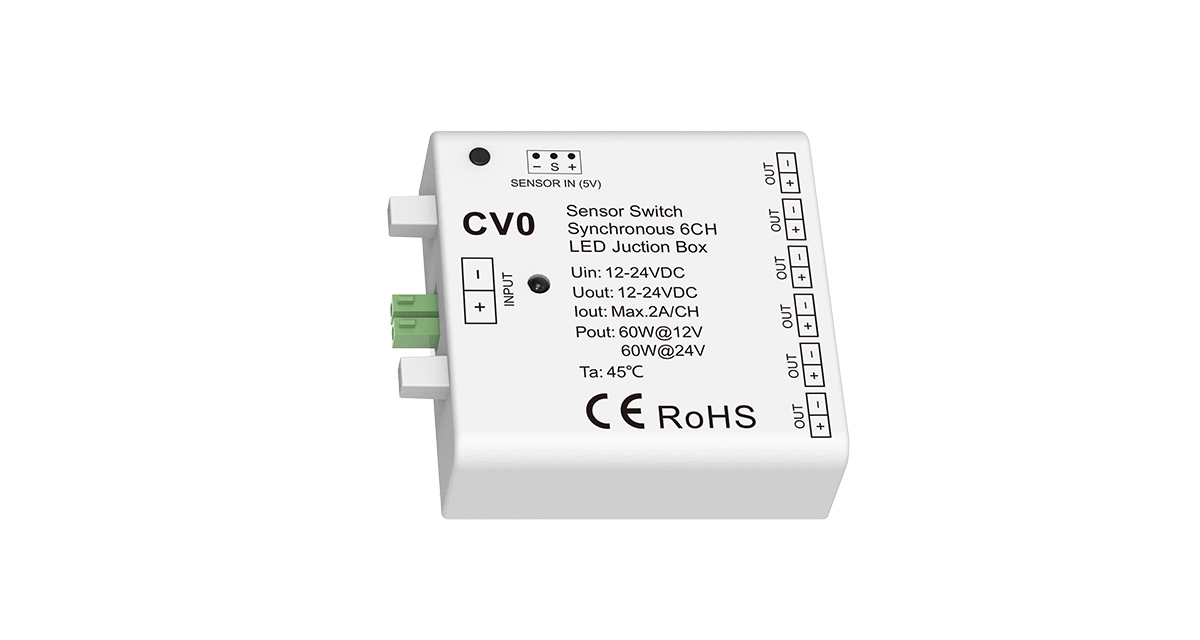

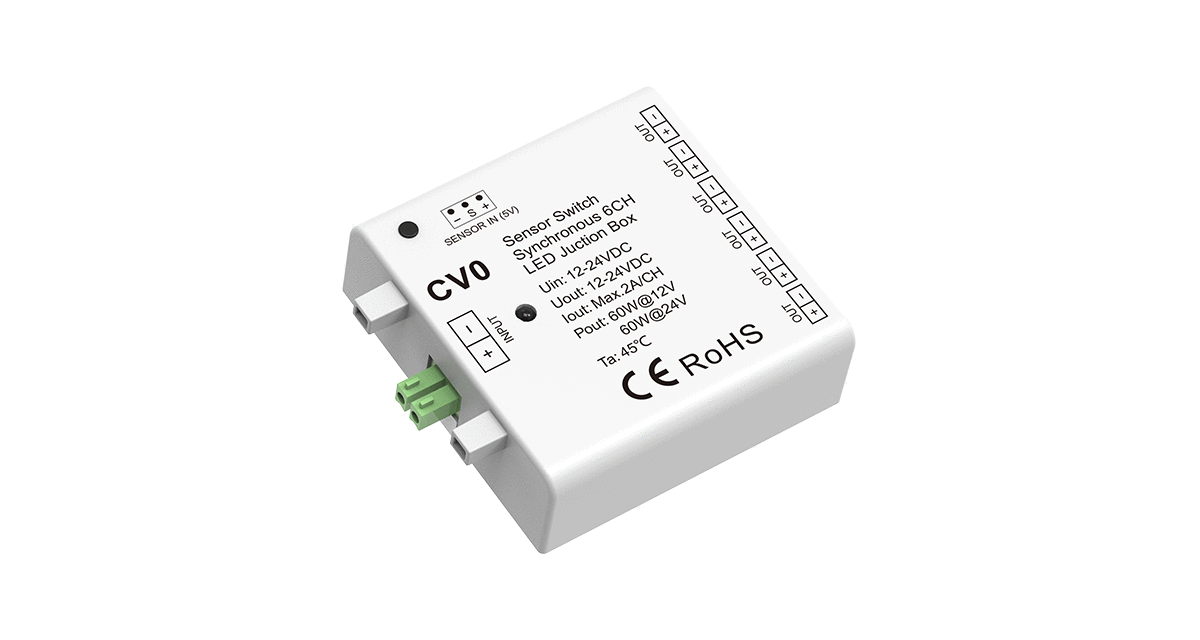

CV0 Sensor Switch Synchronous 6CH LED Junction Box
CV0 Sensor Switch Synchronous 6CH LED Junction Box
Overview
The CV0 Sensor Switch Synchronous 6CH LED Junction Box is designed to distribute and synchronize up to six constant voltage LED strips using a single compatible sensor. It provides a clean and efficient solution for cabinet lighting, wardrobes, display units, and furniture applications where multiple LED strips need to operate simultaneously.
Supporting both 12VDC and 24VDC systems, the CV0 offers stable constant voltage output with a compact design that is easy to install inside cabinets and furniture while delivering reliable performance.
Key Features
- 6-channel synchronous constant voltage output
- Compatible with various sensor switch heads
- 12–24VDC input voltage
- Maximum total output power of 60W
- Maximum 2A output per channel
- Compact and lightweight design
- Easy wiring using screw terminals
- Designed for indoor cabinet LED lighting
- Reliable and stable performance
- Ideal for multi-door cabinet installations
Applications
- Kitchen cabinets
- Wardrobes
- Closets
- Display cabinets
- Retail shelving
- Furniture lighting
- Bookcases
- Residential and commercial cabinet lighting
Technical Specifications
| Specification | Details |
|---|---|
| Model | CV0 |
| Input Voltage | 12–24V DC |
| Output Voltage | 12–24V DC |
| Number of Outputs | 6 Channels |
| Maximum Output Current | 2A per Channel |
| Maximum Total Output Power | 60W |
| Control Input | 5V Sensor Head Input |
| Compatible Load | Single Color Constant Voltage LED Strips |
| Applications | Cabinets, wardrobes, display units, furniture and shelving |
| Operating Temperature | Up to 45°C Ambient |
| Dimensions | 54 × 55 × 18 mm |
| Installation | Indoor Use |
| Warranty | 5 Years |
