PF1-2 RF Touch Panel Dimmer | 2-Zone 2.4G Wall LED Controller

Overview

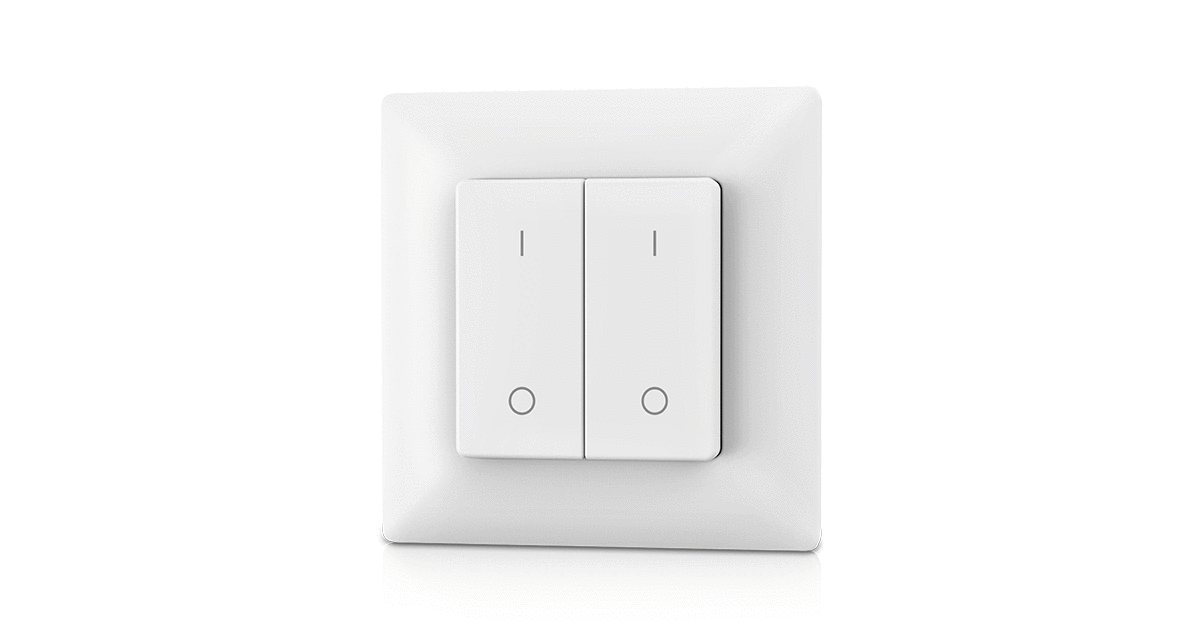

The PF1-2 is a wall-mounted 2-zone RF touch panel dimmer designed for smooth brightness control of single-color LED lighting. Using 2.4G RF wireless communication, it pairs easily with compatible RF dimmer receivers to provide stable ON/OFF switching and 0–100% dimming across two independent lighting zones. Its modern touch glass design makes it ideal for residential, commercial and architectural lighting installations.

Key Features

• 2 independent LED lighting zones
• 2.4G RF wireless control
• Smooth 0–100% brightness dimming
• ON/OFF switching per zone
• Capacitive touch glass panel
• High sensitivity and fast response
• Works with RF LED dimmer receivers
• Modern, clean wall-mounted design
• Low power consumption

Technical Notes

• The PF1-2 is a control panel and requires RF LED dimmer receivers.
• Each zone can control multiple receivers simultaneously.
• Supports smooth PWM dimming, depending on receiver type.
• 2.4G RF ensures long-distance, stable communication.
• Designed for indoor installations.

Wiring & Installation

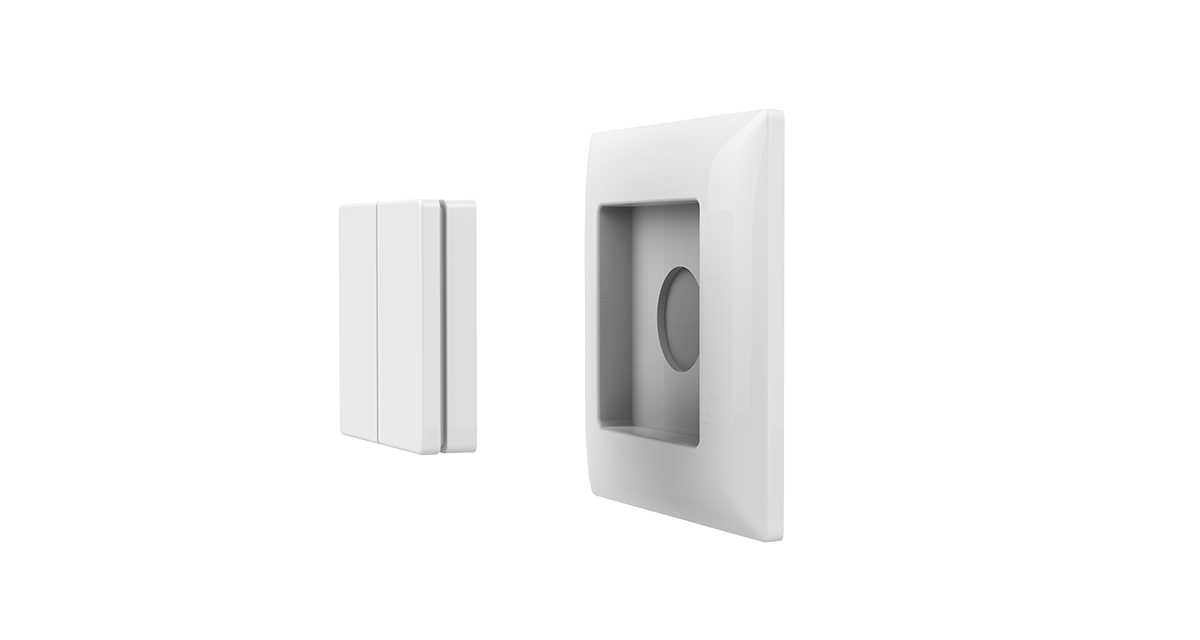

• Wall-mounted installation (86-type or EU standard box).
• Connect to mains power according to the panel’s wiring diagram.
• Pair with RF receivers by entering learning mode on the receiver.
• Select zone 1 or zone 2 to control the associated LED group.
• Suitable for new builds or renovation projects.

Applications

• Residential room lighting control
• Cabinets, shelves and furniture lighting
• Commercial lighting: cafés, offices, shops
• Hotel and hospitality lighting
• Architectural ambient lighting
• Any project requiring 2-zone LED dimming

Technical Specifications

Parameter	Specification
Model	PF1-2 RF Touch Panel Dimmer
Control Zones	2 independent zones
Control Method	Capacitive touch glass panel
Wireless Protocol	2.4G RF
Functions	ON/OFF, 0–100% dimming
Compatible Devices	RF LED dimmer receivers (single-color LEDs)
Power Supply	Mains powered (AC input, varies by version)
Mounting	Wall-mounted (standard electrical box)
Operating Environment	Indoor / dry locations
