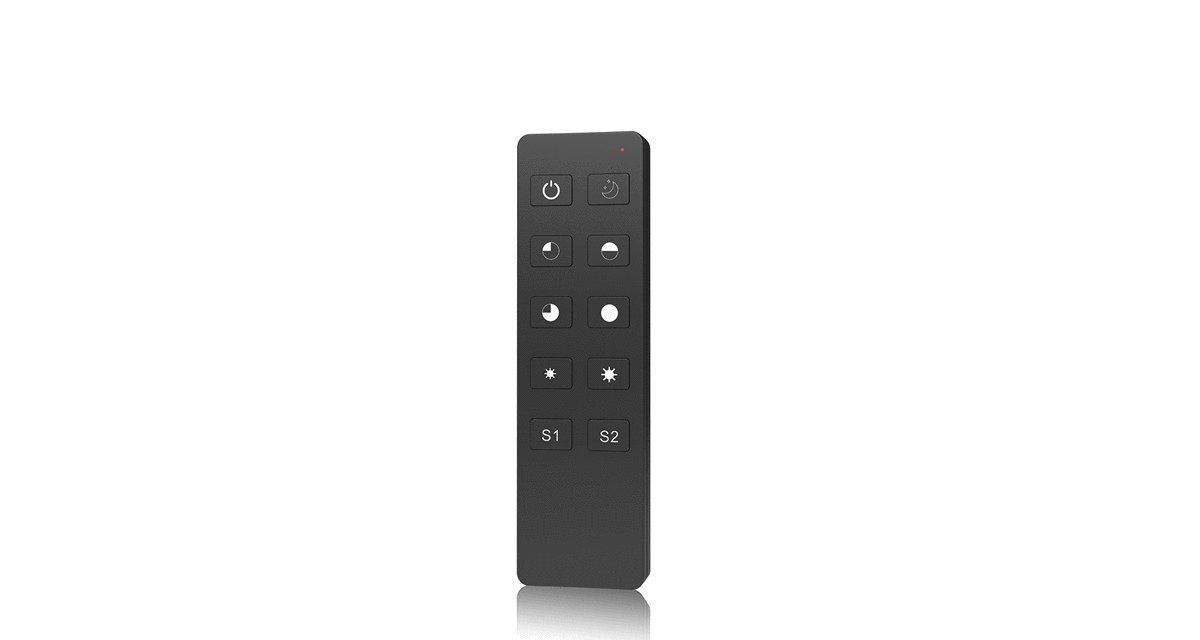

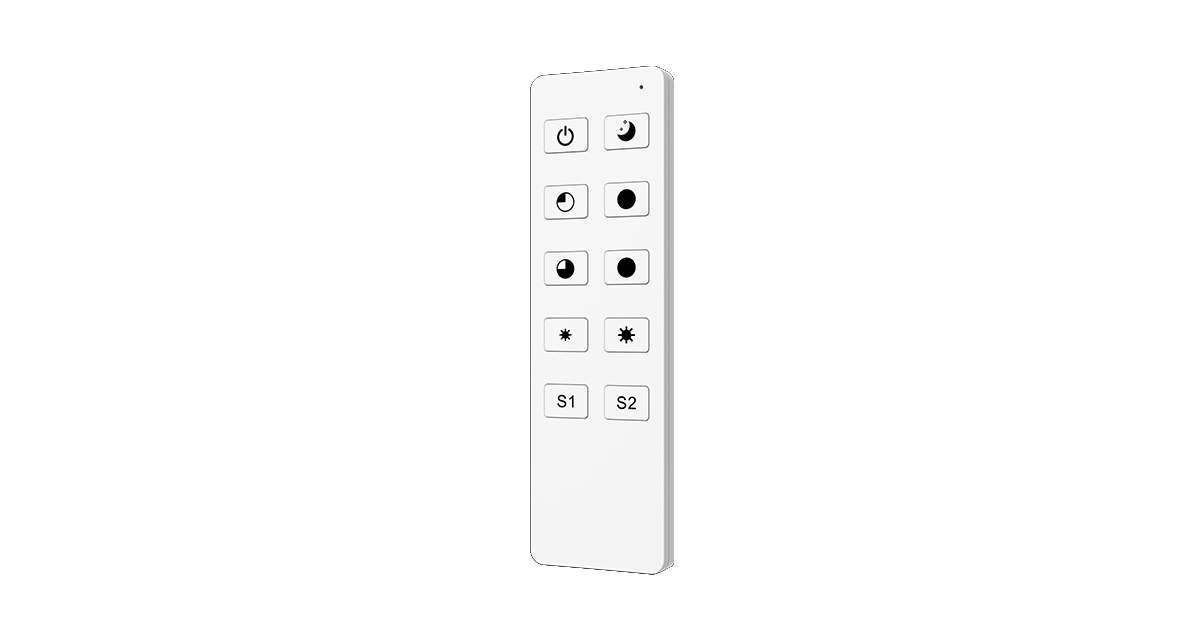

R1 RF LED Dimmer Remote | 1-Zone 2.4G Handheld Controller

Overview

The R1 is a compact 1-zone RF dimmer remote designed for simple and reliable control of single-color LED strips. When paired with a compatible RF receiver, it delivers wireless ON/OFF switching and smooth brightness adjustment using a stable 2.4G RF signal. Its minimalist design and easy operation make it ideal for residential lighting, shelving, furniture illumination, and small commercial LED setups.

Key Features

• 1-zone handheld RF LED dimmer remote
• 2.4G RF wireless communication
• Smooth 0–100% brightness dimming
• ON/OFF control
• Works with RF LED dimmer receivers
• Long-distance wireless operation
• Low-power battery operation
• Compact and ergonomic design

Technical Notes

• R1 is a remote and must be used with an RF receiver.
• Designed for single-lighting-zone applications.
• Dimming quality depends on the paired receiver’s PWM driver.
• 2.4G RF ensures stable and responsive control.
• Battery-powered with extremely low standby consumption.

Pairing & Operation

• Power the RF receiver and connected LED strip.
• Enable pairing mode on the receiver.
• Press the main button on the R1 to bind.
• Use brightness buttons to adjust the LED output.
• Multiple receivers can be paired to one R1 for unified zone control.

Applications

• Single-zone LED strip dimming
• Cabinets, wardrobes and furniture lighting
• Accent and ambient lighting
• Shelves and display lighting
• Residential and hospitality lighting
• Any low-voltage LED system needing RF dimming

Technical Specifications

Parameter	Specification
Model	R1 RF LED Dimmer Remote
Control Zones	1 zone
Communication	2.4G RF wireless
Functions	ON/OFF, brightness dimming
Compatibility	RF LED dimmer receivers
Power Source	Battery powered (varies by version)
Housing	Compact handheld ABS controller
Operating Environment	Indoor use
