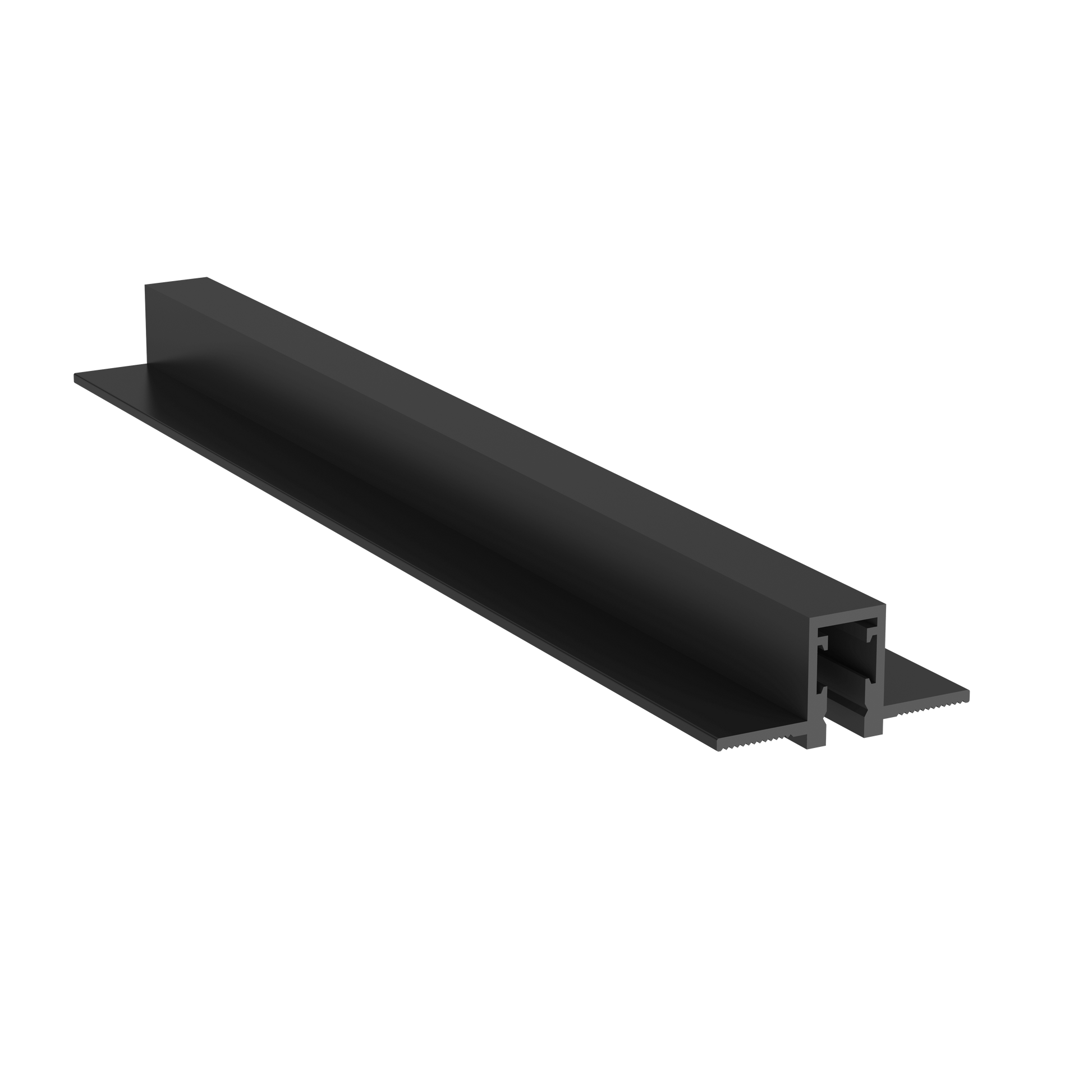

SPS Track-R5 – 5mm Recessed Magnetic Track Profile (48V)

Overview

The SPS Track-R5 is a 5mm recessed magnetic track profile designed for modern architectural lighting installations. Built for 48V magnetic lighting systems, it allows lighting modules to sit cleanly within ceilings or architectural structures, delivering a minimal and professional finish for residential and commercial projects.

Key Features

• 5mm recessed magnetic track profile
• Designed for flush ceiling and architectural installations
• 48V low-voltage magnetic lighting system
• Supports modular and flexible lighting layouts
• High-quality aluminum construction
• Compatible with magnetic linear, spot, grille and pendant modules

System Compatibility

• System Type: 5mm magnetic track lighting
• Voltage: 48V DC
• Compatible Modules: Linear lights, spotlights, grille lights, pendants and magnetic accessories

Technical Notes

• Designed for recessed installation in ceilings or architectural elements.
• Provides continuous power distribution along the track.
• Allows magnetic lighting modules to snap in securely.
• Installed as part of a complete 5mm magnetic track system.

Applications

• Residential recessed magnetic track lighting
• Retail stores and showroom ceilings
• Office and commercial interiors
• Hotels, cafés and hospitality projects
• Architectural lighting designs with minimal finish

Technical Specifications

Parameter	Specification
Model	SPS Track-R5
Track Type	Recessed magnetic track profile
Track Width	5mm
Material	Aluminum
System Voltage	48V DC
Available Lengths	1000 mm / 2000 mm / 3000 mm
Installation	Recessed (flush-mounted)
Application	Indoor architectural lighting
