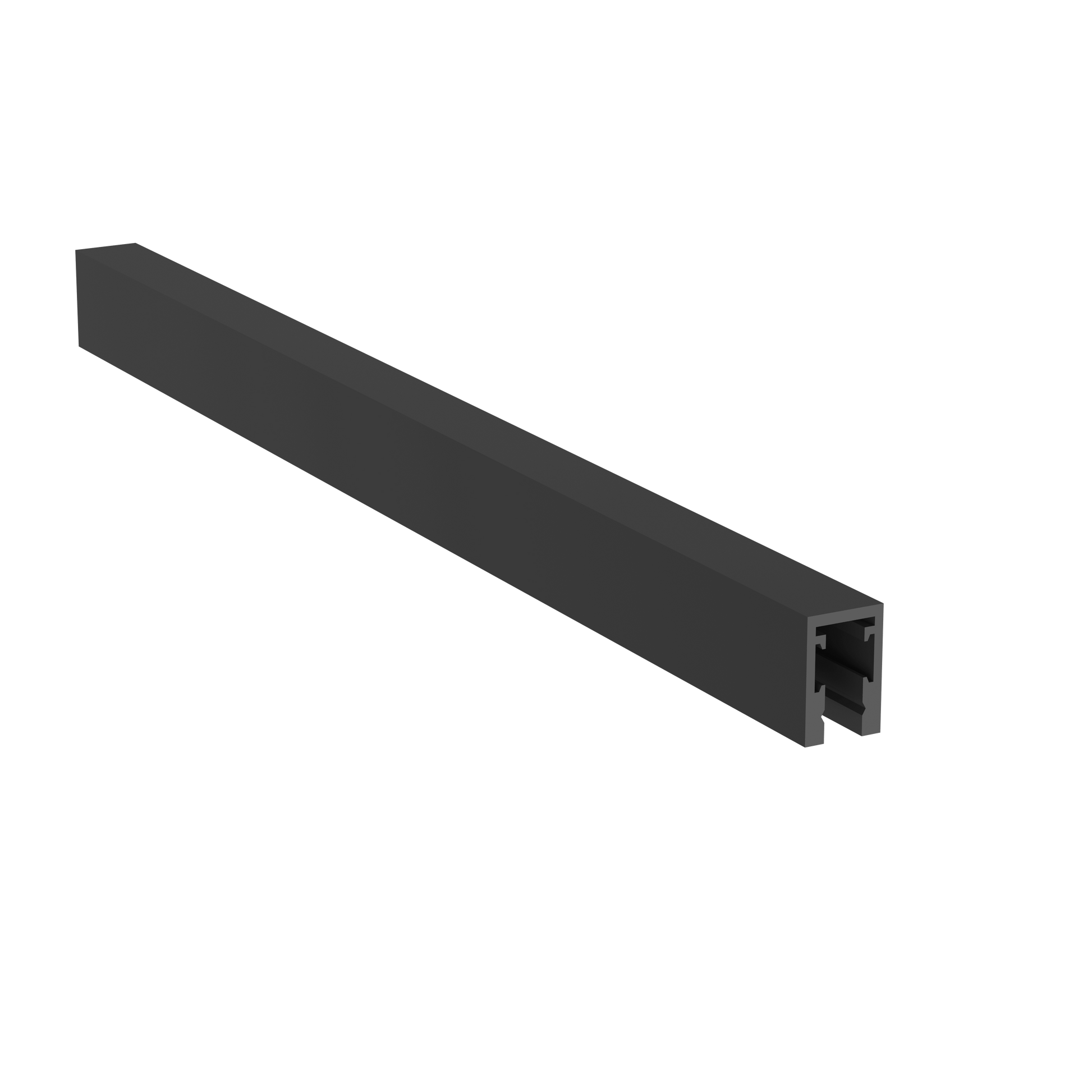

SPS Track-S5 – 5mm Surface (Apparent) Magnetic Track Profile (48V)

Overview

The SPS Track-S5 is a 5mm surface-mounted (apparent) magnetic track profile designed for exposed architectural lighting installations. Built for 48V magnetic lighting systems, it is ideal where recessed installation is not possible, offering a clean, slim and modern track solution for residential and commercial projects.

Key Features

• 5mm surface-mounted (apparent) magnetic track profile
• Designed for exposed ceiling and surface installations
• 48V low-voltage magnetic lighting system
• Slim and minimal aluminum profile
• Supports modular and flexible lighting layouts
• Compatible with magnetic linear, spot, grille and pendant modules

System Compatibility

• System Type: 5mm magnetic track lighting
• Voltage: 48V DC
• Compatible Modules: Linear lights, spotlights, grille lights, pendants and magnetic accessories

Technical Notes

• Designed for surface-mounted (apparent) installations.
• Ideal for concrete ceilings or retrofit lighting projects.
• Provides continuous power distribution along the track.
• Installed as part of a complete 5mm magnetic track system.

Applications

• Residential surface-mounted magnetic track lighting
• Retail stores and showroom ceilings
• Offices and commercial interiors
• Hotels, cafés and hospitality projects
• Architectural lighting with exposed track design

Technical Specifications

Parameter	Specification
Model	SPS Track-S5
Track Type	Surface (apparent) magnetic track profile
Track Width	5mm
Material	Aluminum
System Voltage	48V DC
Available Lengths	1000 mm / 2000 mm / 3000 mm
Installation	Surface-mounted (apparent)
Application	Indoor architectural lighting
