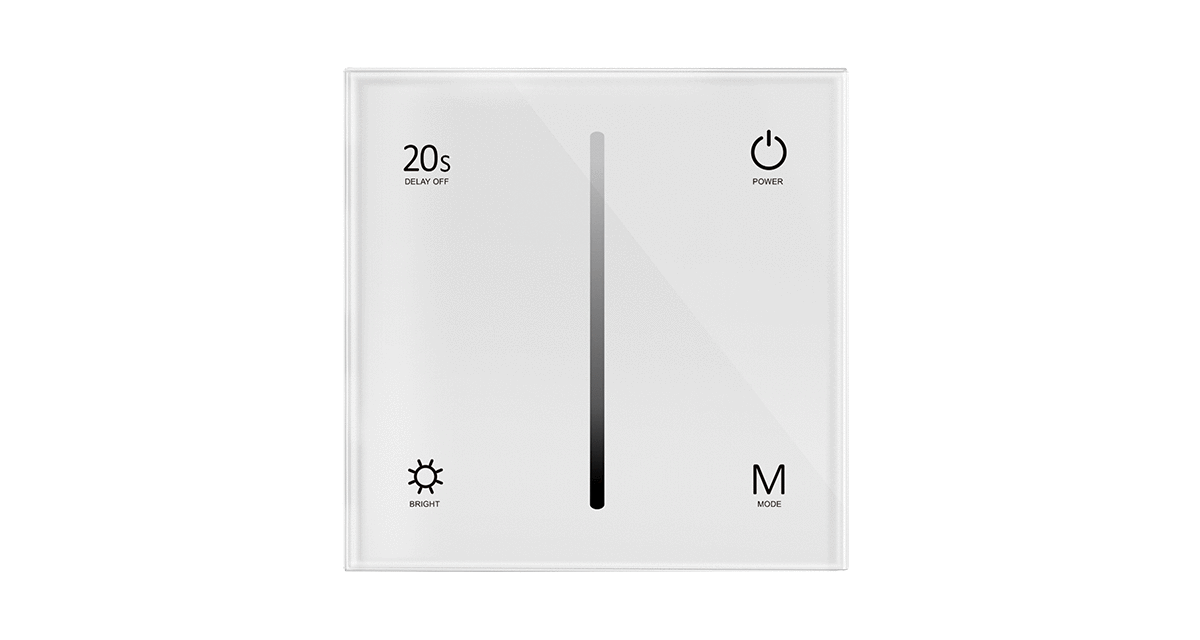

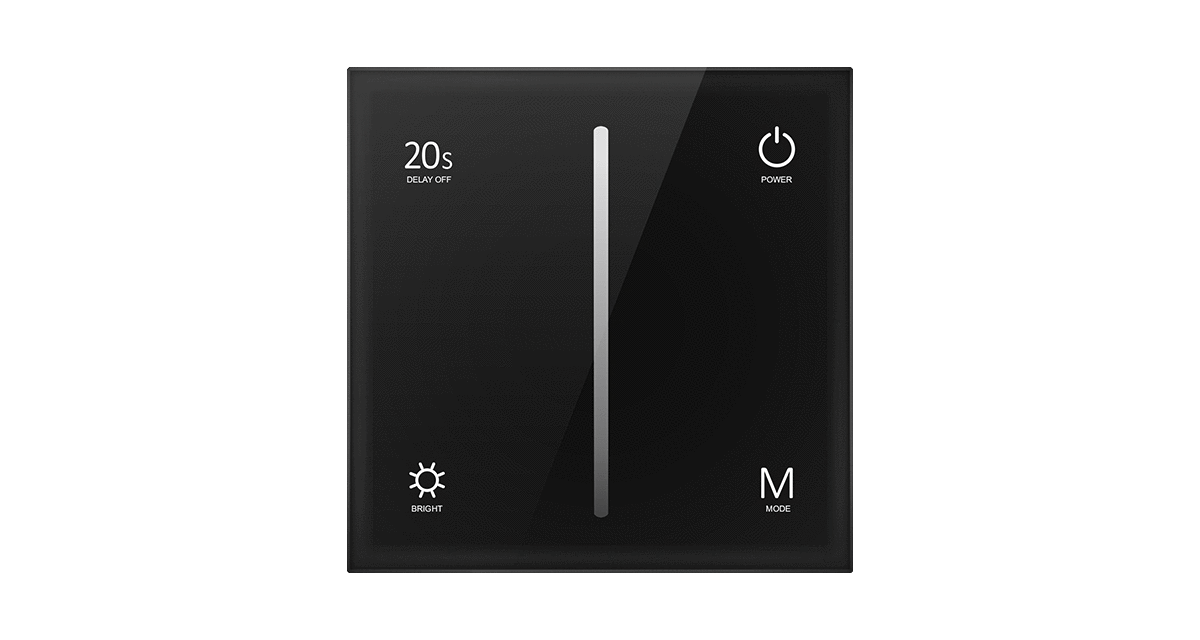

T1-1 Touch Panel LED Controller | 2-CH 5A 12–48V CV Dimmer

Overview

The T1-1 is a dual-channel constant-voltage LED dimming controller designed for 12–48V DC LED strips and low-voltage luminaires. Featuring a modern touch panel interface, the T1-1 enables direct and intuitive control of two independent LED channels. With 5A output per channel and smooth PWM dimming, it is ideal for furniture lighting, wardrobes, shelves, and architectural LED installations.

Key Features

• 2-channel constant voltage LED dimming controller
• Supports 12–48V DC LED systems
• 5A output per channel (10A total)
• Touch-panel interface for simple, elegant control
• Smooth 0–100% flicker-free PWM dimming
• Independent control of two LED zones
• Memory function restores last brightness level
• Ideal for LED strips, LED bars, and linear luminaires
• Mounts easily in furniture, profiles, or junction boxes

Technical Notes

• Requires a compatible constant-voltage DC power supply.
• Channels operate independently with separate dimming levels.
• PWM output ensures consistent brightness and no visible flicker.
• Use appropriately sized wiring for 5A load per channel.
• Suitable for 12V, 24V, 36V, and 48V LED systems within the 12–48V range.
• Not a power supply; functions as a dimming controller only.

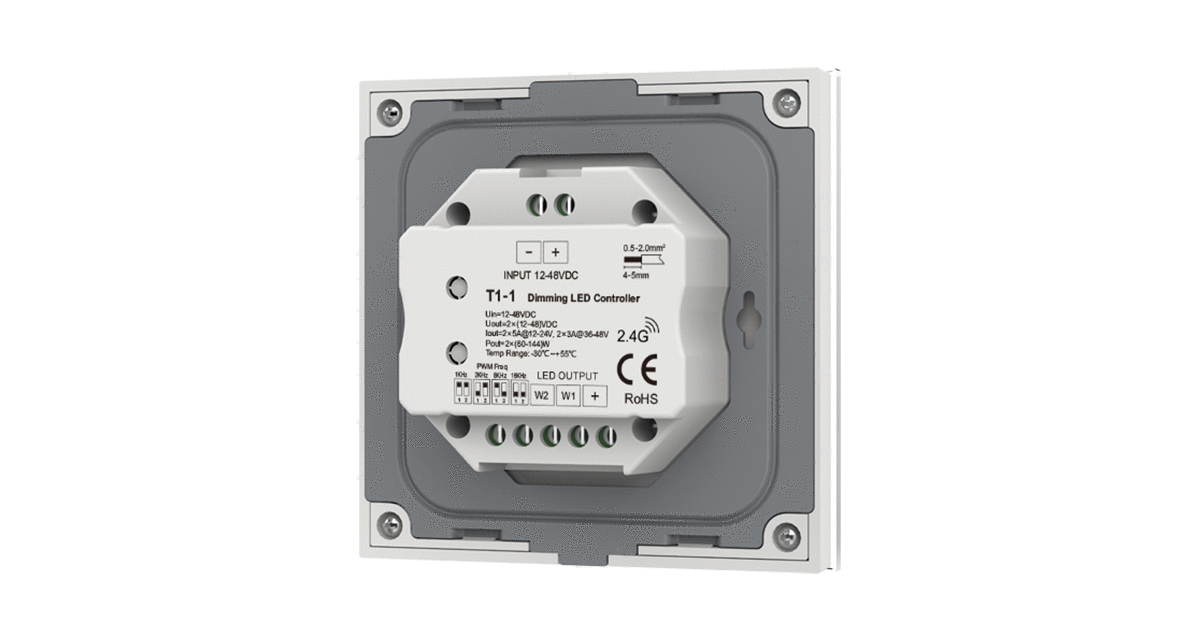

Wiring & Installation

• Connect DC input (12–48V) to the controller’s power terminals.
• Connect LED strips or fixtures to CH1 and CH2 outputs.
• Use proper polarity and wire gauge.
• Install in a dry indoor location (IP20).
• Suitable for integration in cabinets, shelves, furniture, or small enclosures.

Applications

• Wardrobes and cabinet lighting
• Kitchen under-cabinet lighting
• Display shelves and furniture lighting
• Architectural linear LED lighting
• Dual-zone ambient lighting setups
• Commercial and residential LED installations

Technical Specifications

Parameter	Specification
Model	T1-1 Touch Panel LED Controller
Channels	2 independent constant-voltage channels
Input Voltage	12–48V DC
Output Current	5A × 2CH (10A total)
Output Type	PWM constant voltage
Dimming Range	0–100% smooth dimming
Control Interface	Touch-panel
Suitable Loads	Constant-voltage LED strips, bars, and modules
Installation	Indoor, cabinet or wall-mounted enclosure
Environment	IP20 indoor use
Warranty	1–3 years
