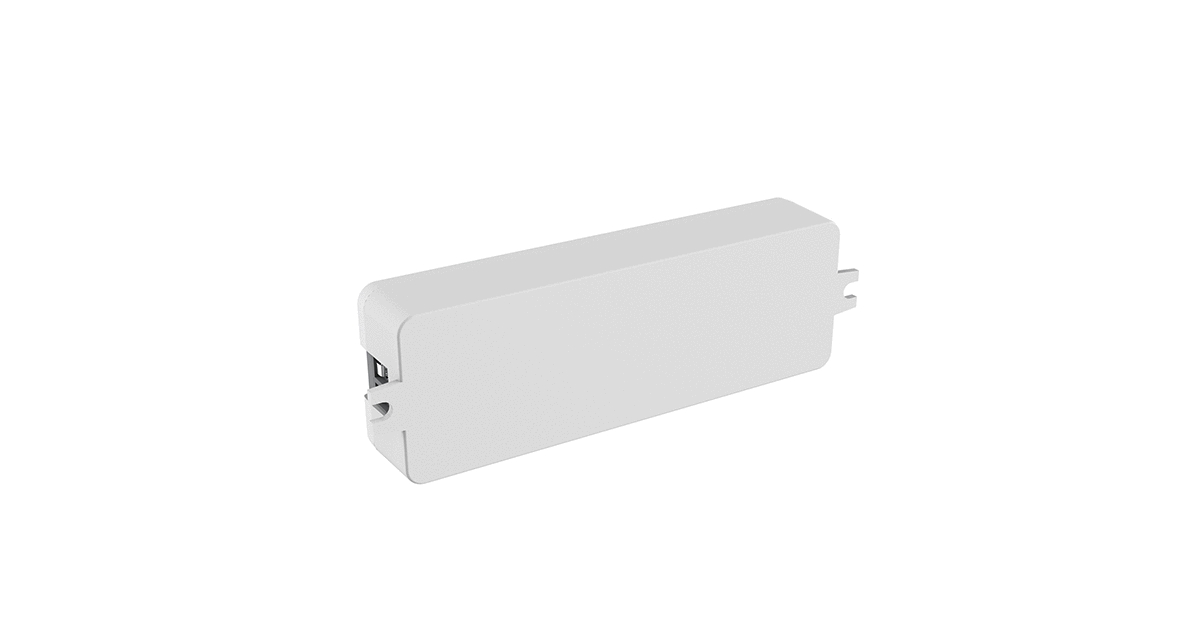

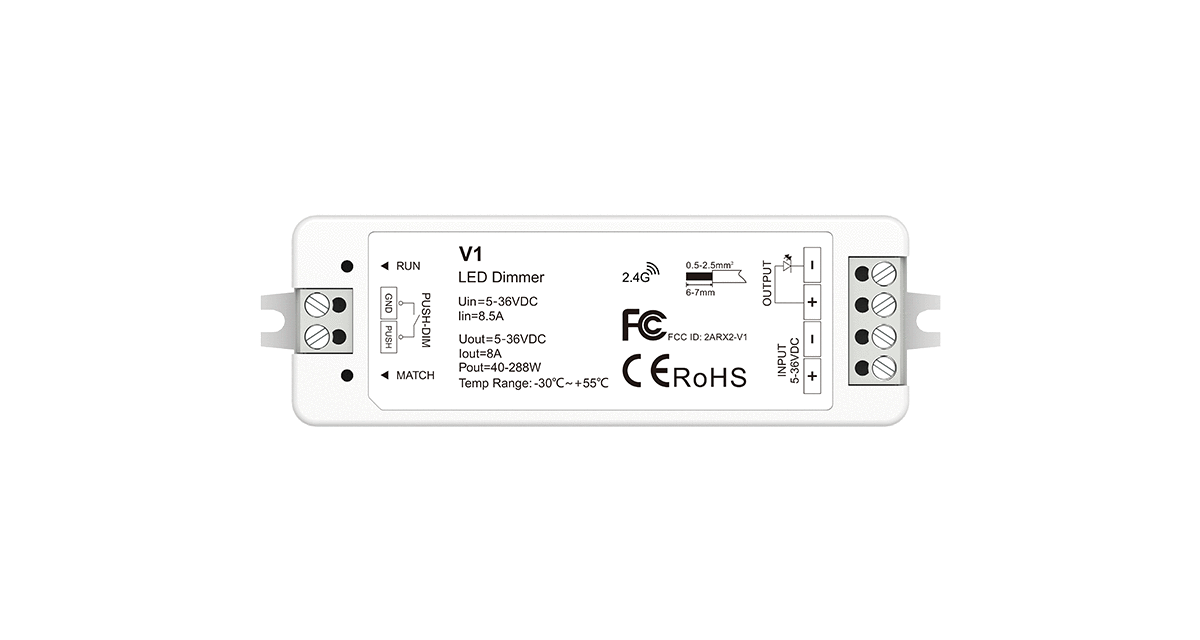

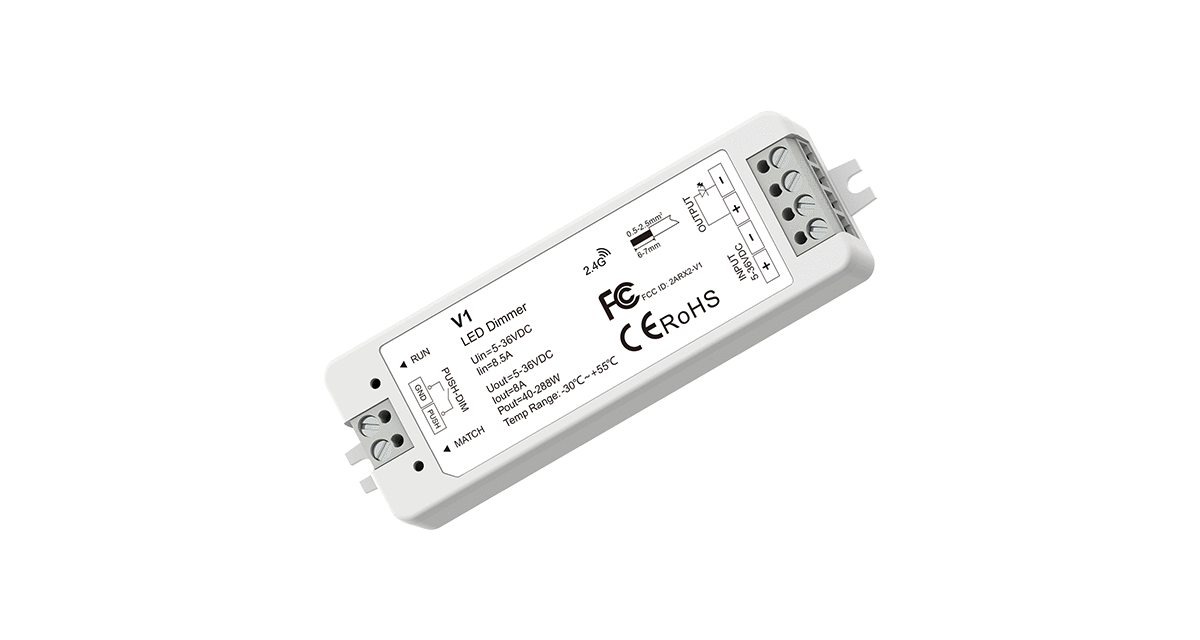

V1 1CH 8A CV LED Controller | 5–36V Push-Dim V1 Dimming Module

Overview

The 1CH × 8A Push-Dim V1 Controller is a single-channel constant voltage LED dimmer designed for smooth brightness control of 5–36V DC LED strips and modules. It supports Push-Dim control for direct wall-switch dimming, as well as PWM output for stable, flicker-free performance. With a high 8A output capacity, it is suitable for medium to large LED strip installations.

Key Features

• 1-channel constant voltage LED dimming controller
• Supports 5–36V DC LED systems
• High output current: 8A max
• Push-Dim control for manual wall-switch dimming
• Smooth 0–100% dimming using PWM technology
• Compatible with LED strips, LED bars and low-voltage luminaires
• Memory function restores previous brightness on power-up
• Compact design for cabinet, junction box or profile installation
• Low-voltage, safe operation
• Easy wiring and quick installation

Technical Notes

• Push-Dim input allows brightness adjustment with a standard wall switch.
• Short press toggles ON/OFF; long press adjusts brightness.
• Supports a wide voltage range, making it compatible with 12V, 24V and 36V LED systems.
• PWM output ensures stable dimming without flicker.
• Use a regulated DC power supply matching the LED strip voltage.
• Do not exceed 8A output load.

Wiring & Installation Notes

• Connect DC power (5–36V) to the input terminals.
• Connect LED strip to the output terminals (observe polarity).
• Connect a momentary wall switch to the Push-Dim input terminals.
• Ensure proper wire gauge for high-current loads.
• Indoor installation only (IP20).
• Mount inside a junction box, cabinet or aluminum LED profile space.

Applications

• Single-color LED strip dimming
• Under-cabinet and furniture lighting
• Linear LED profiles
• Residential and commercial dimmable lighting
• Wardrobes, shelves and display lighting
• Any low-voltage LED system requiring simple dimming control

Technical Specifications

Parameter	Specification
Model	1CH × 8A Push-Dim V1 Controller
Input Voltage	5–36V DC
Output Current	8A max
Output Type	PWM constant voltage
Control Input	Push-Dim (momentary switch)
Dimming Range	0–100% smooth dimming
Memory Function	Yes, restores last brightness level
Installation	Cabinet, junction box or profile mount
Operating Environment	Indoor (IP20)
Warranty	1–3 years
