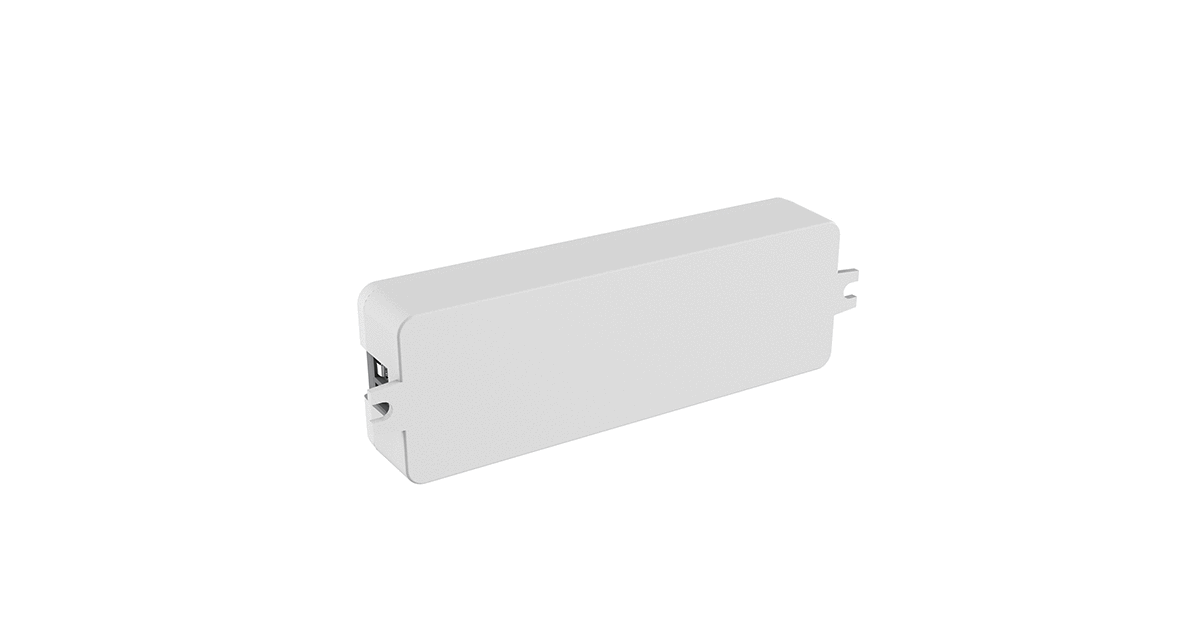

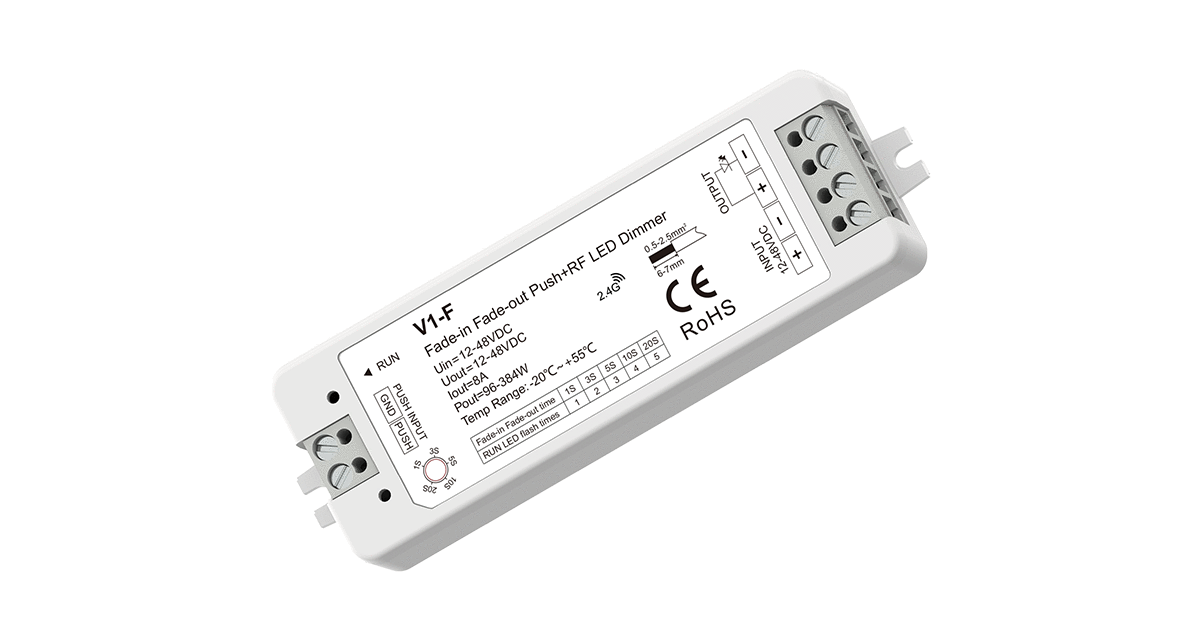

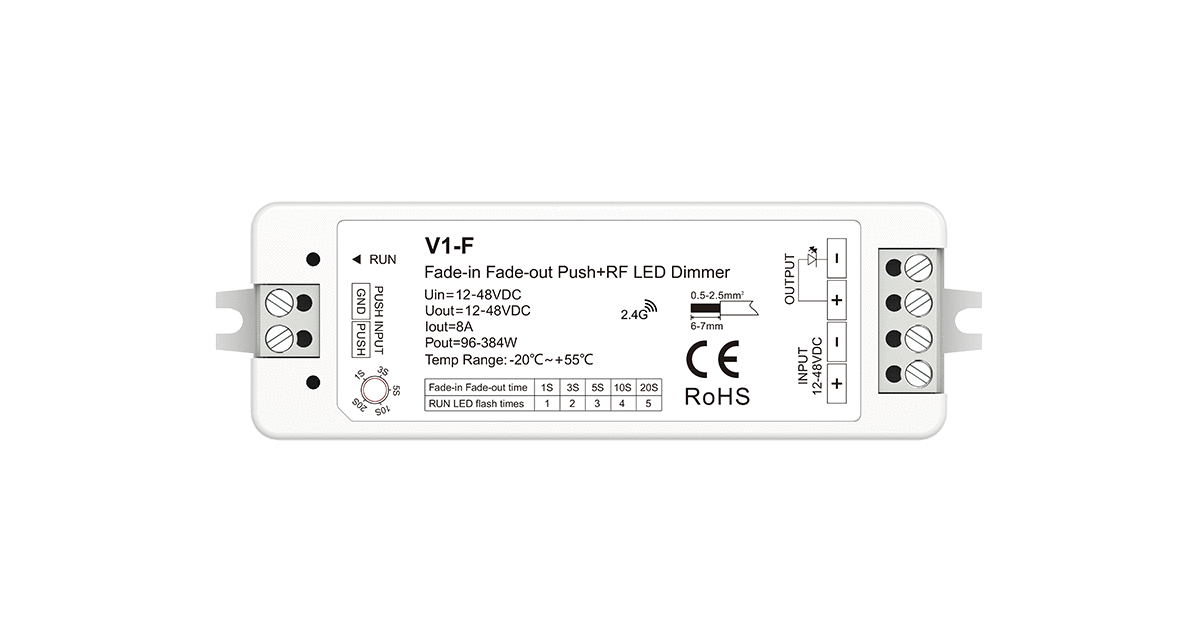

V1-F Fade-in Fade-out Push+RF LED Dimmer | 1CH 8A 12–48V Constant Voltage
V1-F Fade-in Fade-out Push+RF LED Dimmer | 1CH 8A 12–48V Constant Voltage
Overview
The V1-F is a single-channel constant voltage LED dimming controller designed for 12–48V DC LED strips and low-voltage lighting systems. It combines Push-Dim control with an integrated RF 2.4GHz receiver, and adds a selectable fade-in/fade-out function for smooth, soft-start and soft-stop lighting transitions. With an 8A output capacity and a knob-adjustable fading speed, the V1-F is ideal for residential, commercial and hospitality lighting applications where a graceful on/off transition is desired.
Key Features
- 1-channel constant voltage LED dimmer
- Supports 12–48V DC LED systems
- High output current: 8A max (96–384W output power)
- Push-Dim control (momentary switch, positive or negative trigger)
- Built-in RF 2.4GHz receiver for wireless remote dimming
- Selectable fade-in/fade-out speed: 1s / 3s / 5s / 10s / 20s via knob potentiometer
- Smooth 0–100% dimming, logarithmic curve (4096 levels / 2^12)
- Dimming memory restores last brightness level, even after power failure
- Auto-synchronization across multiple controllers on the same push switch
- Over-heat / over-load / short-circuit protection with automatic recovery
- Compact housing, easy DIN-style installation
Technical Notes
- Push-Dim: short press = ON/OFF; long press (1–6s) = step-less dimming, alternating direction on each long press.
- Fading speed is set via the onboard knob; the RUN LED flashes 1–5 times to confirm the selected speed (factory default: 1s).
- RF pairing: power-cycle the controller, then press the remote's on/off (or zone) key 3 times within range to match; hold 5 times to clear all matches.
- For multi-controller installs on one push switch, a long press of 10s+ synchronizes the group to 100% brightness — no extra sync wiring required.
- Recommended maximum of 25 controllers per push switch; push-switch wiring run should not exceed 20m.
- PWM frequency: 2000Hz (default). Dimming curve: logarithmic, Gamma = 1.6.
- Do not exceed 8A output current per channel.
Wiring & Installation Notes
- Connect 12–48V DC constant voltage power to the input terminals (observe polarity).
- Connect single-color LED strip/load to the output terminals.
- Connect a self-resetting (momentary) metal button or push switch to the Push-Dim input — positive or negative trigger supported.
- Pair an RF 2.4G single-zone or multi-zone remote for optional wireless control.
- Install in a dry indoor location (IP20).
- Suitable for junction boxes, cabinets or aluminum profiles.
Applications
- Single-color LED strip dimming with soft fade transitions
- Hospitality and residential ambient lighting
- Furniture and cabinet lighting
- Linear LED profiles
- Under-shelf and cove lighting
- Any low-voltage LED system requiring smooth on/off fading plus RF/Push-Dim control
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | V1-F Fade-in Fade-out Push+RF LED Dimmer |
| Input Voltage | 12–48V DC |
| Output Voltage | 12–48V DC (Constant Voltage) |
| Output Current | 1CH, 8A max |
| Output Power | 96–384W |
| Input Signal | RF 2.4GHz + Push-Dim |
| Control Distance | 30m (barrier-free space) |
| Dimming Range | 0–100%, logarithmic curve (Gamma 1.6) |
| Dimming Gray Scale | 4096 levels (2^12) |
| PWM Frequency | 2000Hz (default) |
| Fade Speed Options | 1s / 3s / 5s / 10s / 20s (knob selectable) |
| Memory Function | Yes |
| Operating Temperature | Ta: -20°C ~ +55°C |
| Case Temperature (Max.) | Tc: +85°C |
| IP Rating | IP20 (Indoor) |
| Protection | Short circuit, over-heat, over-load — auto recover |
| Dimensions | L114 x W38 x H26mm |
| Gross Weight | 0.053kg |
| Safety & EMC | CE, RoHS, ETSI EN 300 440, EN 61347-1/-2, EN IEC 55015/61547, ETSI EN 301 489-1/-3 |
| Warranty | 5 years |
