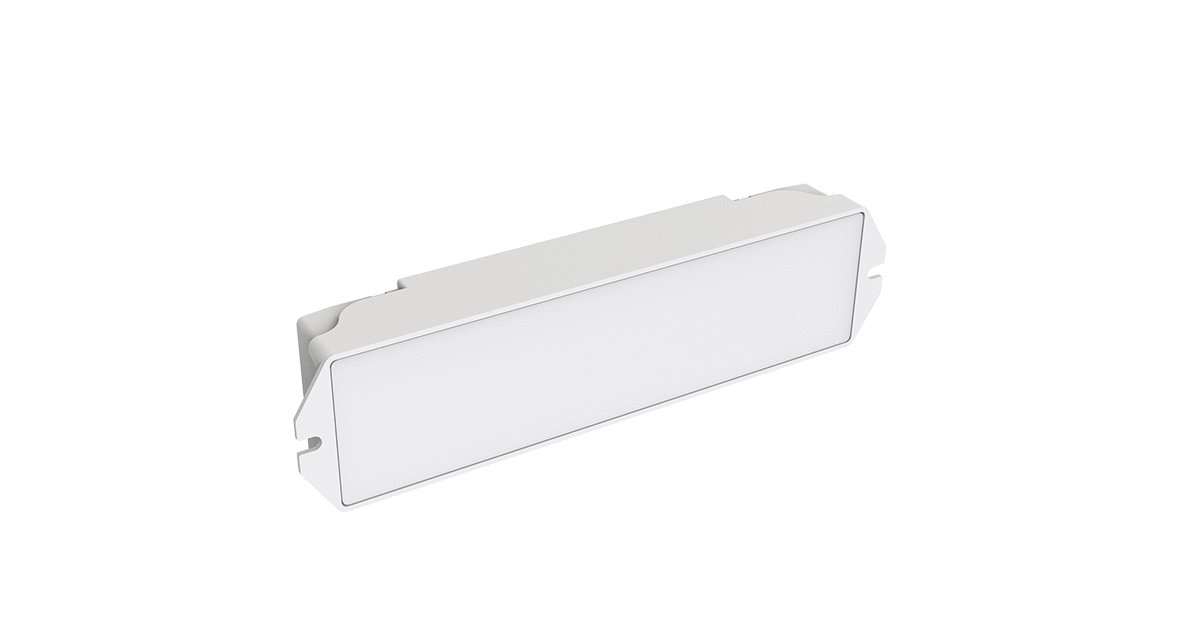

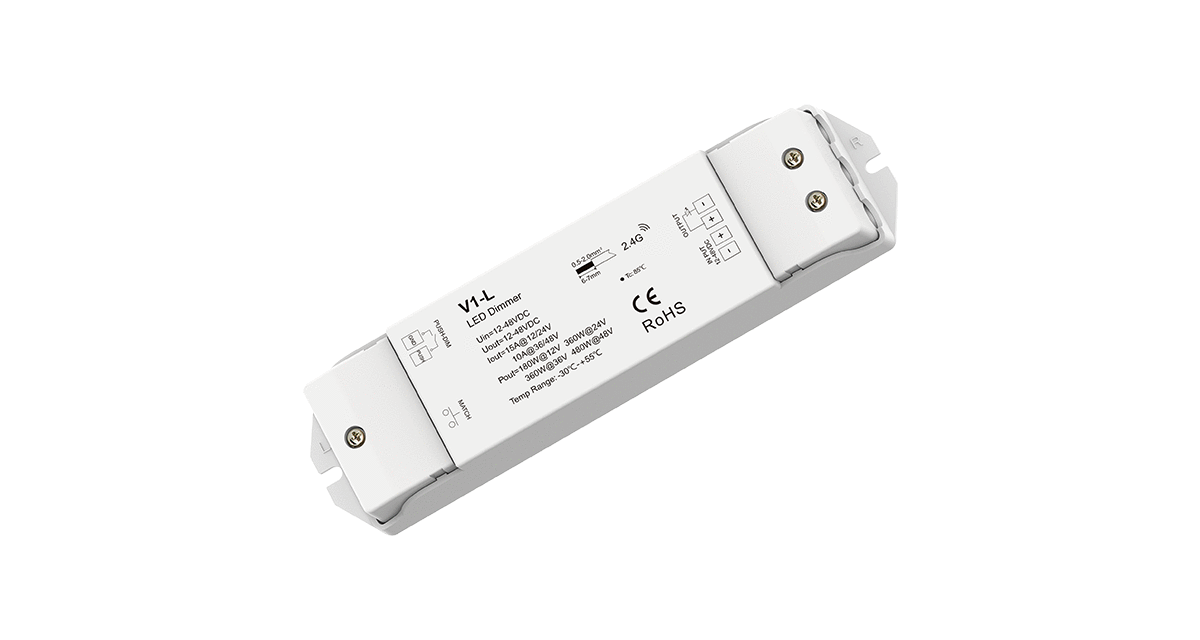

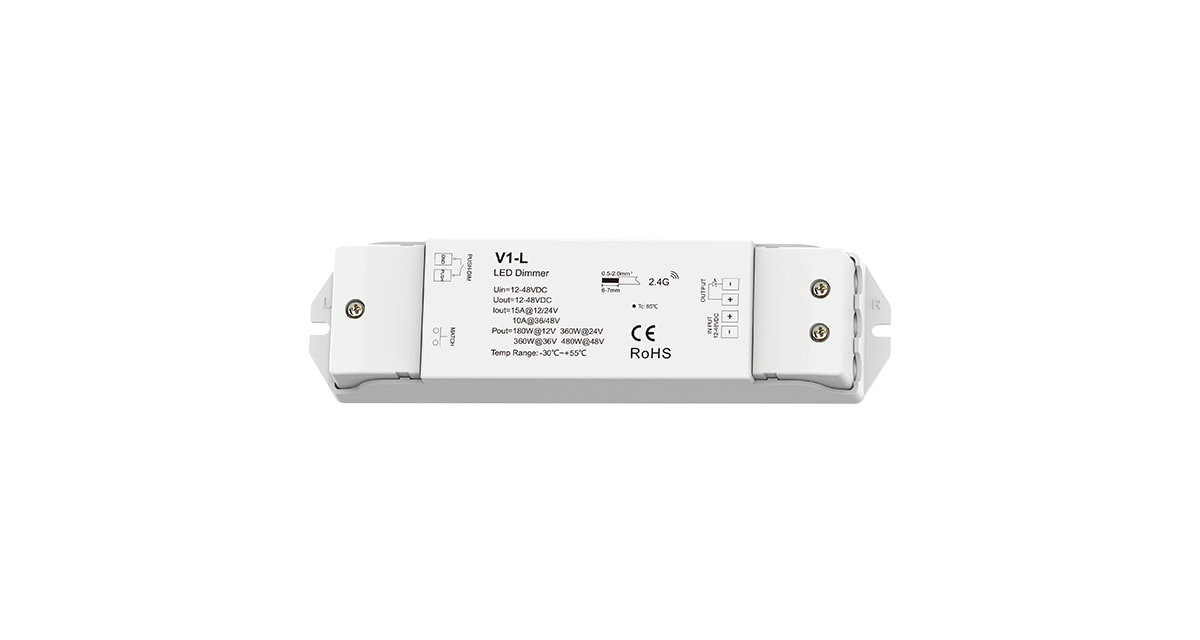

V1-L Push-Dim LED Controller | 1CH 15A 12–48V Constant Voltage Dimmer

Overview

The 1CH × 15A Push-Dim V1-L Controller is a high-power single-channel constant voltage LED dimmer designed for 12–48V DC LED strips and luminaires. It supports Push-Dim wall-switch control and delivers smooth, flicker-free dimming using PWM output. With a robust 15A current capacity, it is ideal for long LED strip runs, high-brightness installations and commercial lighting applications.

Key Features

• Single-channel constant voltage LED dimmer
• Supports 12–48V DC LED systems
• High output current: 15A max
• Push-Dim wall switch control (momentary switch)
• Smooth 0–100% PWM dimming
• Memory function restores last brightness level
• Compatible with LED strips, bars and low-voltage fixtures
• Wide voltage range suitable for 12V, 24V and 48V systems
• Designed for high-load, long-run LED installations
• Safe low-voltage design and compact form factor

Technical Notes

• Push-Dim allows ON/OFF switching and dimming via a standard wall button.
• Short press = ON/OFF; long press = dimming adjustment.
• 15A output supports large LED strip segments on a single channel.
• PWM output ensures stable and flicker-free dimming.
• Requires an external constant voltage LED power supply.
• Ensure correct wire gauge to support the 15A load.

Wiring & Installation Notes

• Connect 12–48V DC power supply to the input terminals.
• Connect LED load to the output terminals (observe polarity).
• Connect a momentary Push-Dim switch to the control input.
• Install in a dry indoor environment (IP20).
• Mount inside a junction box, cabinet, or profile depending on layout.
• Use thick cabling for high-current installations.

Applications

• Large single-color LED strip installations
• Commercial linear lighting
• High-brightness LED bars
• Under-cabinet and furniture lighting
• Architectural lighting systems
• Any high-power low-voltage dimmable LED system

Technical Specifications

Parameter	Specification
Model	1CH × 15A Push-Dim V1-L Controller
Input Voltage	12–48V DC
Output Current	15A max
Output Type	PWM constant voltage
Control Input	Push-Dim (momentary switch)
Dimming Range	0–100% smooth dimming
Memory Function	Yes, restores last brightness level
Installation	Junction box / cabinet / profile mount
Operating Environment	Indoor (IP20)
Warranty	1–3 years
