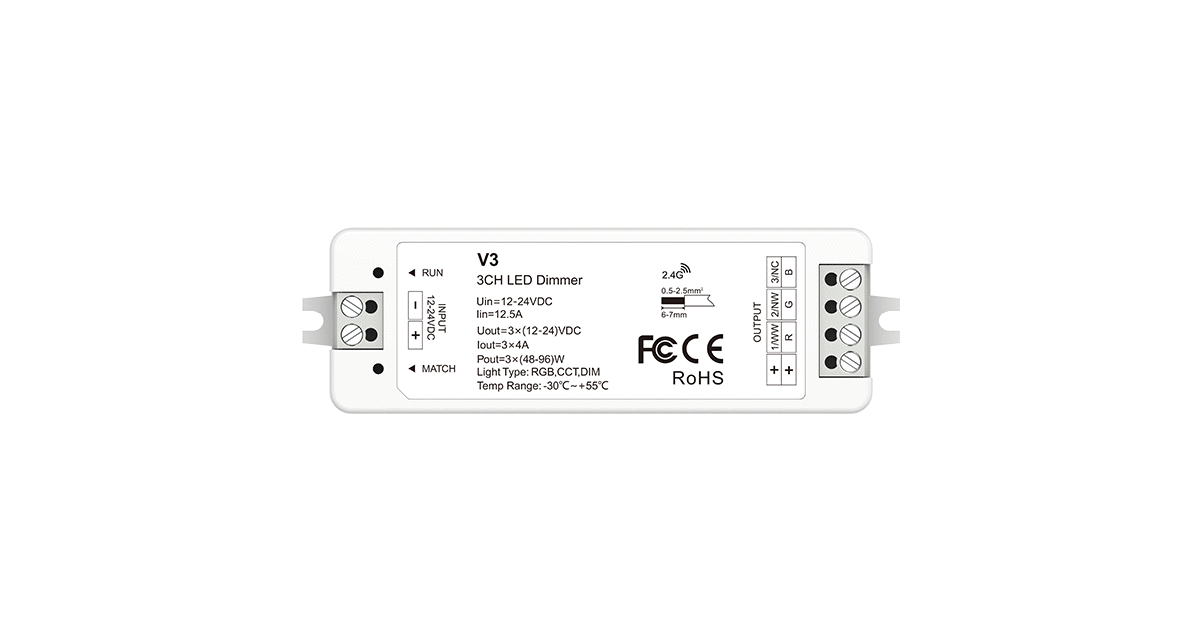

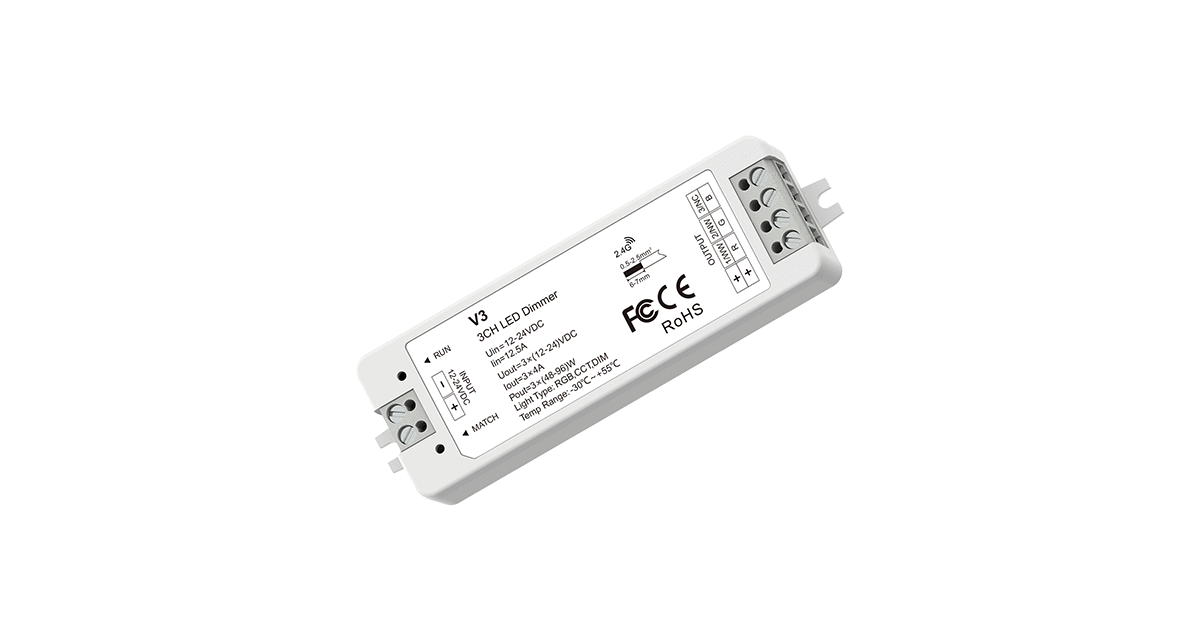

V3 RGB LED Controller | 3CH 4A 12–24V Constant Voltage Receiver

Overview

The V3 is a 3-channel constant voltage RGB LED controller designed for smooth color mixing and dimming of low-voltage RGB LED strips. With 4A output per channel and a wide input range of 12–24V DC, it delivers stable, high-performance control for residential, commercial and decorative lighting environments. The V3 supports 2.4G RF wireless control when paired with compatible RGB remotes, offering responsive color adjustment and multi-zone capability.

Key Features

• 3 channels × 4A output (RGB)
• Wide input voltage: 12–24V DC
• Smooth RGB color mixing and dimming
• 2.4G RF wireless control (paired with RGB remotes)
• 0–100% brightness adjustment
• PWM constant voltage output for flicker-free performance
• Multiple receivers can sync to one remote
• Compact, durable design for easy installation

Technical Notes

• V3 is an RF receiver for RGB remotes and controllers.
• Suitable for any RGB LED strip using common anode wiring.
• PWM technology ensures smooth color transition and dimming.
• Load capacity supports medium to long RGB strip installations.
• Designed for indoor applications in dry locations.

Wiring & Installation

• Connect DC power input (12–24V) to the controller terminals.
• Connect RGB LED strip to R, G, B output channels.
• Pair with an RF remote via the receiver’s learning button.
• Mount in a ventilated, moisture-free area for best performance.

Applications

• RGB LED strip color control
• Decorative and ambient lighting
• Architectural color enhancement
• Cove lighting and indirect RGB installations
• Furniture, shelving and display lighting
• Bars, clubs, cafés and retail mood lighting

Technical Specifications

Parameter	Specification
Model	V3 RGB LED Controller
Channels	3 channels (RGB) × 4A each
Input Voltage	12–24V DC
Output Type	Constant voltage PWM
Max Output	4A per channel (12A total)
Wireless Protocol	2.4G RF (remote required)
Compatibility	RF RGB controllers & remotes
Operating Environment	Indoor, dry locations
