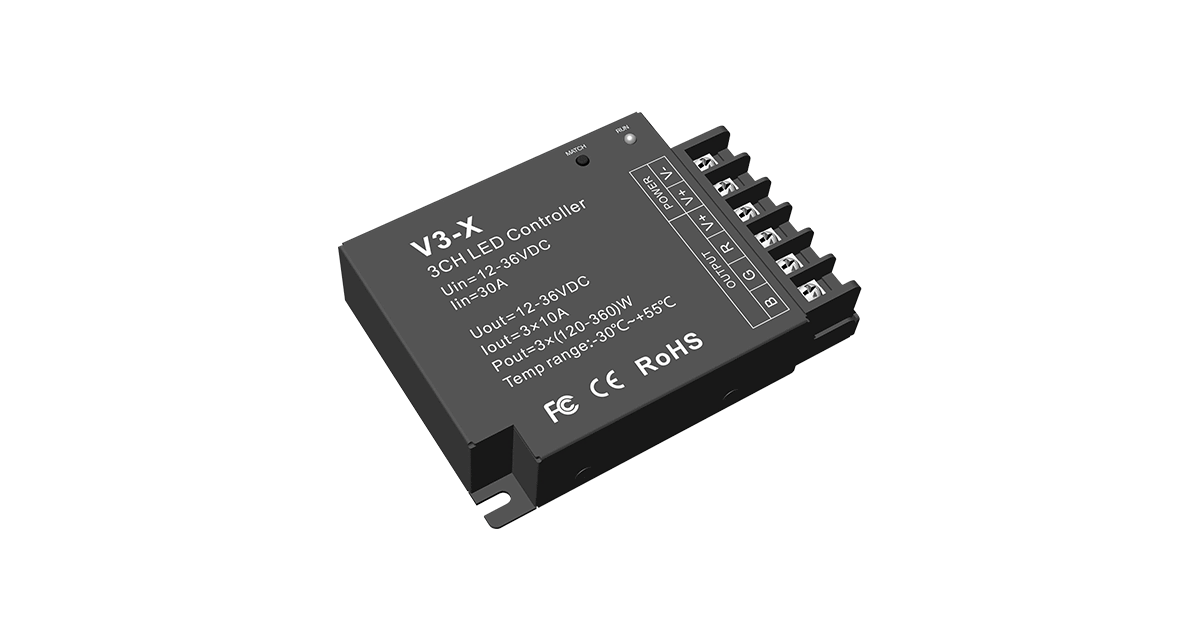

V3-X LED Controller | 3CH 10A 12–36V Constant Voltage Receiver

Overview

The V3-X is a high-performance 3-channel constant voltage LED controller designed for RGB and multi-channel LED strip applications. With an output of 10A per channel and a wide input voltage range of 12–36V DC, it supports long LED strip runs and high-power installations. The controller operates as a 2.4G RF receiver, enabling wireless control through compatible LED remotes. Its robust design makes it ideal for residential, commercial and architectural projects requiring powerful and stable RGB lighting control.

Key Features

• 3 channels × 10A output (RGB or 3-channel applications)
• Wide input voltage range: 12–36V DC
• High total output capacity for demanding installations
• Smooth RGB color mixing and 0–100% dimming
• 2.4G RF wireless control compatibility
• PWM constant voltage driver ensures flicker-free performance
• Suitable for long LED strip runs and large installations
• Can synchronize with multiple receivers for multi-zone control

Technical Notes

• V3-X functions as an RF receiver for RGB or 3CH LED control.
• Supports common-anode RGB LED strip wiring.
• High current capacity makes it suitable for high brightness and long runs.
• PWM dimming ensures smooth transitions and stable color output.
• Recommended for indoor environments in dry locations.

Wiring & Installation

• Connect DC power input (12–36V) to the controller’s input terminals.
• Connect RGB LED strip to R, G, B output channels.
• Pair with an RF remote using the receiver’s learning button.
• Install in a ventilated area for optimal thermal performance.

Applications

• RGB LED strip lighting control
• Architectural lighting for large spaces
• Commercial and retail lighting installations
• Bars, lounges, clubs and hospitality lighting
• Long-run LED strip projects requiring high output power
• Any project needing reliable, high-capacity RGB control

Technical Specifications

Parameter	Specification
Model	V3-X LED Controller
Channels	3 channels × 10A each (30A total)
Input Voltage	12–36V DC constant voltage
Output Type	PWM constant voltage dimming
Wireless Control	2.4G RF (works with RGB remotes)
Max Output Power	Up to 360W @ 36V / 240W @ 24V / 120W @ 12V per channel
Compatibility	RF RGB remotes & controllers
Operating Environment	Indoor use, dry locations
